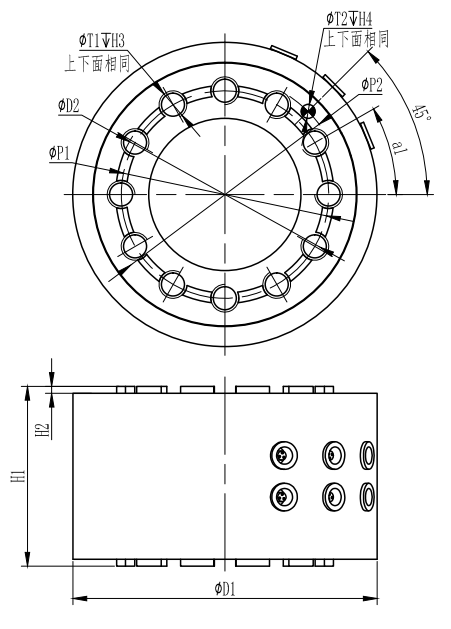

◆安装尺寸/Mounting Dimension
量程 |
H1 |
D1 |
H2 |
P1 |
D2 |
T1 |
H3 |
P2 |
T2 |
H4 |
a1 |
|
Fx=Fy=30kN,Fz=100kN Mx=My=1.5kN.m Mz=1kN.m |
52 |
88 |
2 |
60±0.1 |
63-0.05 |
M8 |
8 |
68+0.05 |
4H7 |
5 |
12×30° |
|
Fx=Fy=80kN,Fz=200kN Mx=My=Mz=5kN.m |
60 |
124 |
90±0.1 |
95-0.05 |
M12 |
10.5 |
103+0.05 |
||||
|
Fx=fy=200kN,Fz=500kN Mx=My=20kN.m,Mz=10kN.m |
82 |
169 |
130±0.1 |
136-0.05 |
M16 |
22 |
145+0.05 |
||||
|
Fx=Fy=300kN,Fz=1000kN Mx=My=25kN.m,Mz=15kN.m |
112 |
180 |
145-0.05 |
M20 |
16 |
155+0.05 |
7 |
||||
|
Fx=Fy=500kN,Fz=1000kN Mx=My=100kN.m,Mz=25kN.m |
180 |
250 |
5 |
200±0.2 |
205-0.1 |
30 |
220+0.05 |
6H7 |
8 |
||
|
Fx=Fy=500kN,Fz=4000kN Mx=My=Mz=200kN.m |
180 |
352 |
280±0.2 |
300-0.5 |
M30 |
30 |
280-0.05 |
8H7 |
10 |
16×22.5+11.25° |
参数 |
Specifications |
技术指标/Technique |
额定量程 |
Nomial load |
见表格 |
零点输出 |
Zero balance |
±5%mV/V |
非线性 |
Non-linearity |
0.3%F.S. |
滞后 |
Hysteresis |
0.3%F.S. |
重复性 |
Repeatability |
0.3%F.S. |
输入电阻 |
Input impedance |
≥350Ω |
输出电阻 |
Output impedance |
≥350Ω |
绝缘电阻 |
Insulation |
≥2000MΩ/50VDC |
激励电压 |
Recommended excitation |
5~12V |
最大激励电压 |
Maxmum excitation |
15V |
温度补偿范围 |
Compensated temp range |
-10~40℃ |
工作温度范围 |
Operation temp range |
-20~60℃ |
安全超载 |
Safe overload |
120%F.S. |
极限超载 |
Ultimate overload |
150%F.S. |
电缆尺寸 |
Cable size |
6-φ4×4000mm |
防护等级 |
Protection class |
IP65 |

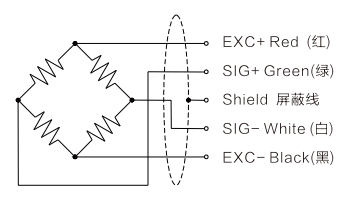

◆配线图/Wiring Code
