产品描述
Code |
Measurement range |
005 |
Fx=1kN;Fy=1kN;Fz=5kN;Mx=0.05kNm;My=0.05kNm;Mz=0.05kNm |
010 |
Fx=2kN;Fy=2kN;Fz=10kN;Mx=0.15kNm;My=0.15kNm;Mz=0.15kNm |
025 |
Fx=5kN;Fy=5kN;Fz=25kN;Mx=0.35kNm;My=0.35kNm;Mz=0.25kNm |
050 |
Fx=10kN;Fy=10kN;Fz=50kN;Mx=0.7kNm;My=0.7kNm;Mz=0.5kNm |
100 |
Fx=20kN;Fy=20kN;Fz=100kN;Mx=2kNm;My=2kNm;Mz=1.5kNm |

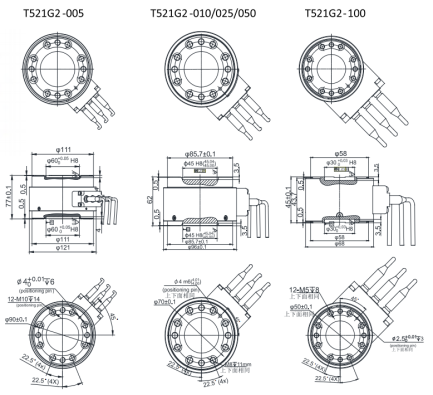

◆安装尺寸/Mounting Dimension
参数 |
Specifications |
技术指标/Technique |
输出方式 |
Output mode |
模拟量输出 |
输出灵敏度 |
Rated output |
≈1.0mV/V |
零点输出 |
Zero balance |
±2%F.S. |
非线性 |
Non-linearity |
0.03%F.S. |
滞后 |
Hysteresis |
0.03%F.S. |
重复性 |
Repeatability |
0.03%F.S. |
互扰误差 |
Interference error |
1%F.S. |
蠕变（30min） |
Creep(30min) |
0.05%F.S. |
温度灵敏度漂移 |
Temp.effect on output |
0.05%F.S/10℃ |
零点温度漂移 |
Temp.effect on zero |
0.05%F.S./10℃ |
绝缘电阻 |
Insulation |
≥5000MΩ/100VDC |
激励电压 |
Recommended excitation |
5~12V |
最大激励电压 |
Maximum excitation |
15V |
温度补偿范围 |
Compensated temp range |
-10-40℃ |
工作温度范围 |
Operation temp range |
-20~75℃ |
安全超载 |
Safe overload |
150%F.S. |
极限超载 |
Ultimate overload |
300%F.S. |
电缆线尺寸 |
Cable size |
φ4×4000mm |
防护等级 |
IP Class |
IP66 |

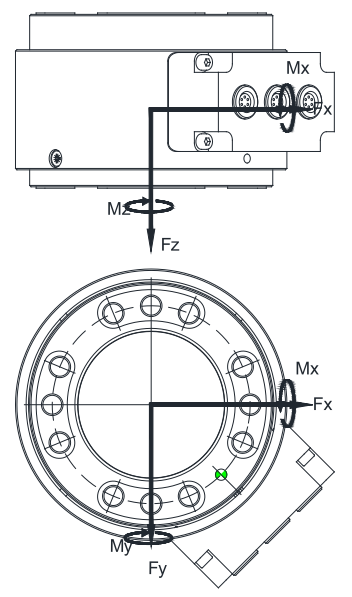

◆受力方式/Load Direction

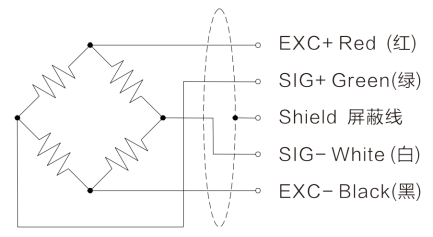

◆配线图/Wiring Code
