CT-50W数字显示器
Digital Indicator
Feature
The product shows signal of sensor and micro voltage output sense, which used strain gauge, into digital display and analogue output as indicator, high sampling and comparison output are available.
High resolving power : 24bit ADC, 16bit DAC
High accuraty (over 0.01% F.S) and stability
Unit conversion (kg, N, lb, kg/cm2, bar, Mpa)
Analog peal hold
Rapid sampling speed (1000 times/sec)
System error automatic return
Calibration of actual load and sensor output value
Auto zero function (Display & analogue out zero)

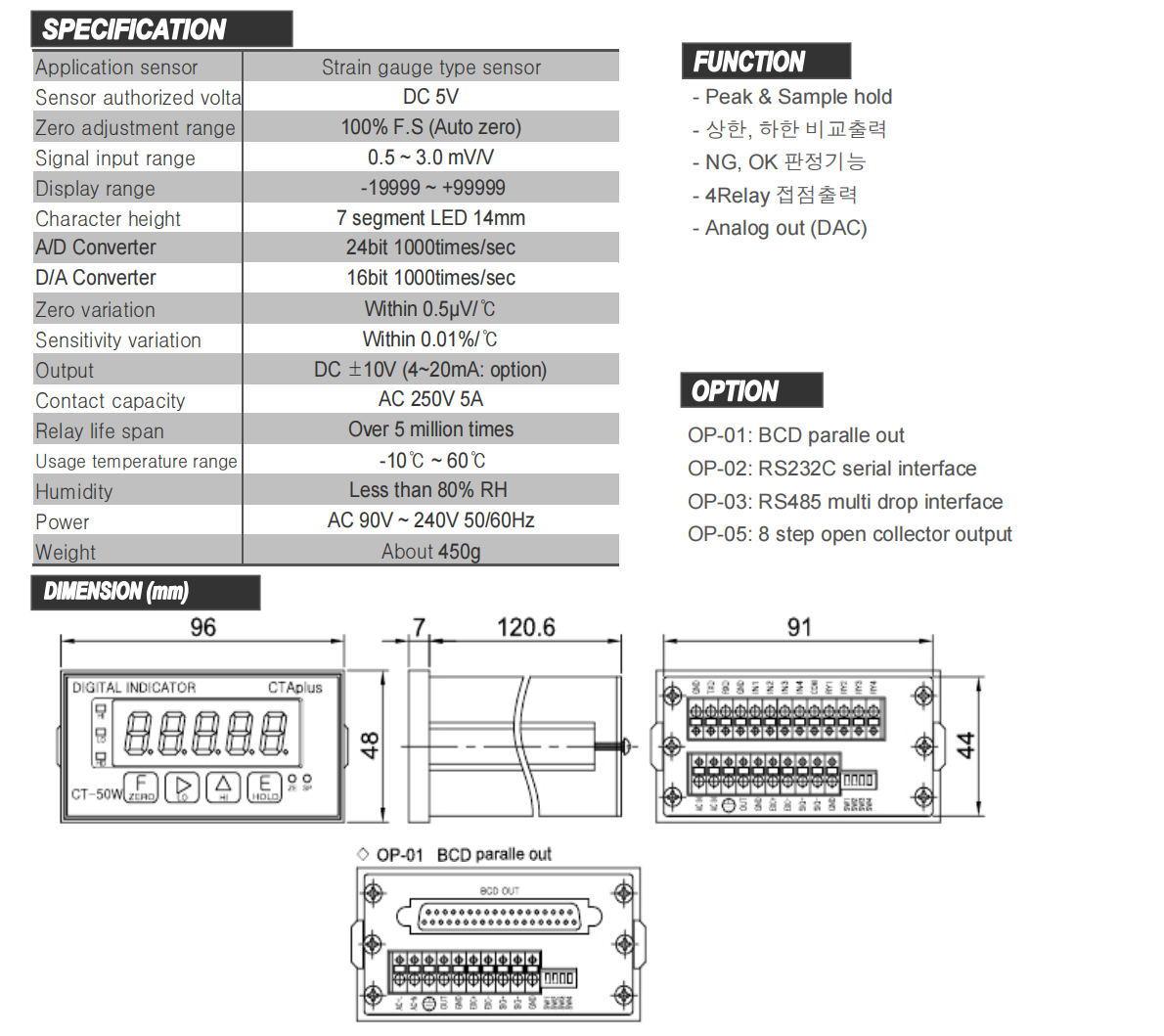

Specification
Application sensor |
Strain gauge type sensor |
Sensor authorized voltage |
DC 5V |
Zero adjustment range |
100% F.S(Auto zero) |
Signal input range |
0.5~3mV/V |
Display range |
-19999~+99999 |
Character height |
7 segment LED 14mm |
A/D converter |
24bit 1000 times/sec |
D/A converter |
16bit 1000 times/sec |
Zero variation |
Within 0.5μV/°C |
Sensitivity variation |
Within 0.01%/°C |
Output |
DC 0~10V(4~20mA : Option) |
Contact capacity |
AC 250V 5A |
Relay life span |
Over 5 million times |
Usage temperature range |
-10°C ~ 60°C |
Humidity |
Less than 80% RH |
Power |
AC 90V ~ 240V 50/60Hz |
Weight |
About 450g |
Function
Peak & Sample hold
Upper and lower limit comparison output
NG, OK decision function
4 Relay out
Analog out(DAC)
Option
OP-01 : BCD paralle out
OP-02 : RS232C serial interface
OP-03 : RS485 multi drop interface

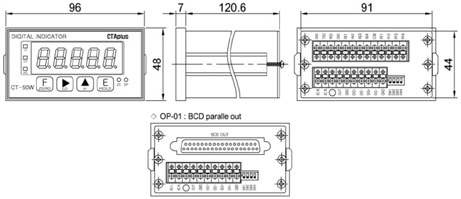

Dimension
